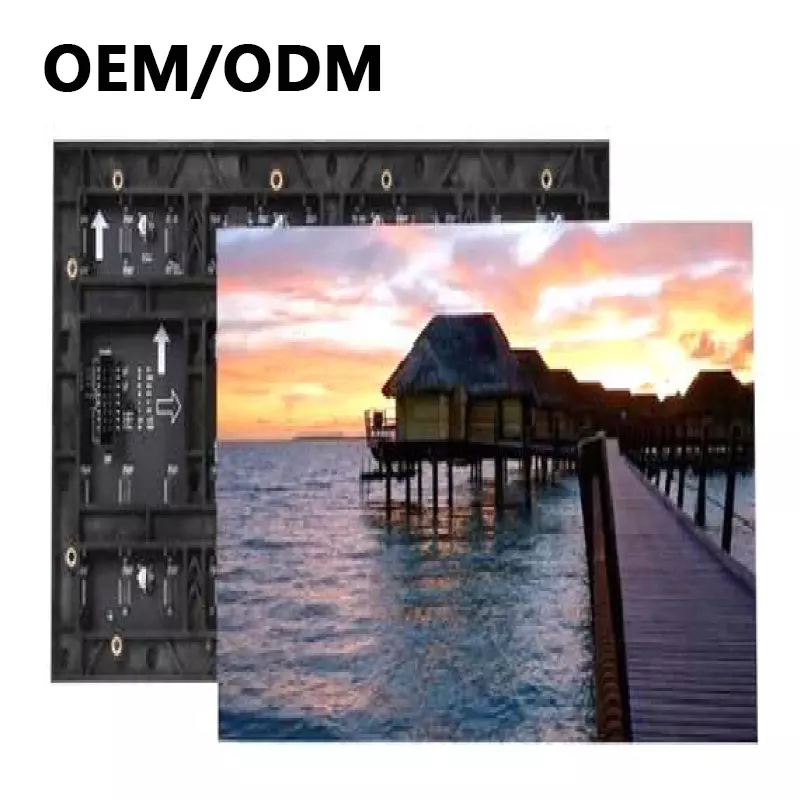

LED rental display Display Series-II

MOQ: 1 Pieces

Delivery time: 15 Day

Product Details

Product Introduction

1. Product Models: LED rental display P4 P6 P8 P10 P20 pixel pitch

2. Product Features:

Premium craftsmanship, high maturity, and excellent stability.

Ultra-high refresh rate delivers sharper visuals and refined display for an immersive visual experience.

Wide color gamut delivers lifelike visuals and sharper photography.

Robust construction with enhanced strength, premium chassis components ensure reliable stability.

Compatible with multiple cabinet sizes for superior flexibility and installation ease.

Superior surface protection and efficient heat dissipation.

3. Applications: Interior decoration, stage lighting, surveillance, conferences, exhibitions, healthcare, hospitality, retail chains, and more.

Product parameters

Product Model	P2	P2.5	P3.076	P4	P5
Pixel Composition	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Pixel pitch (mm)	2mm	2.5mm	3.076mm	4mm	5mm
Pixel density Dots/m²	250000	160000	105625	62500	40000
Package Type(Surface Mount)	SMD1515	SMD2121/1515	SMD2121	SMD2020	SMD2121
Structural Features	Integrated lighting and control	Integrated lighting and control	Integrated lighting and control	Integrated lighting and control	Integrated lighting and control
Drive Type	Constant Current Drive	Constant Current Drive	Constant Current Drive	Constant Current Drive	Constant Current Drive
Scan Parameters	1/40	1/32	1/26, 1/52	1/32, 1/20	1/16
Module Dimensions	320*160mm	320*160mm	320*160mm	320160mm, 256128mm, 256*256mm	32016015mm
Module Resolution Dots	160*80=12800	128*64=8192	104*52=5408	6432=2048, 6464=4096, 80*40=3200	64*32=2048
Enclosure Dimensions	640*480mm Die-cast aluminum enclosure	Custom	640*480mm Die-cast aluminum enclosure	Custom	640*480mm Die-cast aluminum enclosure
White Balance Brightness	≥450cd/m²	≥450cd/m²	≥450cd/m²	≥450cd/m²	≥450cd/m²
Brightness Uniformity	Brightness difference between pixels: ±2.5%	Brightness difference between pixels: ±2.5%	Brightness difference between pixels: ±2.5%	Brightness difference between pixels: ±2.5%	Brightness difference between pixels: ±2.5%
Optimal viewing distance	1–30m	2.5–100m	2.5–100m	4–100m	5–100m
Best Viewing Angle	Horizontal: 120±10°, Vertical: 120±10°	Horizontal: 120±10°, Vertical: 120±10°	Horizontal: 120±10°, Vertical: 120±10°	Horizontal: 120±10°, Vertical: 120±10°	Horizontal: 120±10°, Vertical: 120±10°
Panel thickness	≤100cm	≤100cm	≤100cm	≤100cm	≤100cm
Display panel weight	≤35kg/m²	≤15Kg/m²	≤15Kg/m²	≤15Kg/m²	≤15Kg/m²
Operating Voltage	AC220V±10%, 50Hz (Three-phase five-wire system)	AC220V±10%, 50Hz (Three-phase five-wire system)	AC220V±10%, 50Hz (Three-phase five-wire system)	AC220V±10%, 50Hz (Three-phase five-wire system)	AC220V±10%, 50Hz (Three-phase five-wire system)
Average power consumption	300w/m²	300w/m²	300w/m²	300w/m²	400w/m²
Maximum power consumption	600w/m²	600w/m²	600w/m²	600w/m²	800w/m²
Driver device	High refresh rate IC	FM6124/DP5125	FM6124/DP5125	FM6124/DP5125	FM6124/DP5125
Gray scale	Full color 256 levels, expandable to 65,536 levels	Full color 256 levels, expandable to 65,536 levels	Full color 256 levels, expandable to 65,536 levels	Full color 256 levels, expandable to 65,536 levels	Full color 256 levels, expandable to 65,536 levels
Gray Scale Calibration	Software 100-level grayscale adjustable	Software 100-level grayscale adjustable	Software 100-level grayscale adjustable	Software 100-level grayscale adjustable	Software 100-level grayscale adjustable
Display Color	16.7M	16.7M	16.7M	16.7M	16.7M
Frame rate	≥60Hz	≥60Hz	≥60Hz	≥60Hz	≥60Hz
Refresh rate	3840Hz	≥1920Hz/3840Hz	≥1920Hz/3840Hz	≥1920Hz/3840Hz	≥1920Hz/3840Hz
Service life	≥100,000 hours	≥100,000 hours	≥100,000 hours	≥100,000 hours	≥100,000 hours
Mean Time Between Failures	≥10,000 hours	≥10,000 hours	≥10,000 hours	≥10,000 hours	≥10,000 hours
Ambient temperature	Storage -50℃~+85℃, Work -40℃~+50℃	Storage -50℃~+85℃, Work -40℃~+50℃	Storage -50℃~+85℃, Work -40℃~+50℃	Storage -50℃~+85℃, Work -40℃~+50℃	Storage -50℃~+85℃, Work -40℃~+50℃
Relative humidity	10%~95%RH	10%~95%RH	10%~95%RH	10%~95%RH	10%~95%RH
Operating Environment	Indoor	Indoor	Indoor	Indoor	Indoor
