Product Introduction
LED transparent holographic screen has four major features: light, transparent, thin and clever. No structural keel frame, can be seen through the strong, direct perception of the permeability rate of up to 80% or more. In thedisplay effect and permeability to achieve ahigh balance. LED transparent holographic screen module adopts black fiberglass skeleton substrate, into the mesh, the module seam hiding excellent, through-holeperspective, perspective effect is better, playback of the picture contrast is higher, more high- definition. Open module, better heat dissipation. LED transparent holographic screen is suitable for retail window, shopping mall atrium, indoor partition, stage background, exhibition display, glass curtain wall, creativedisplay, recreation and tourism.

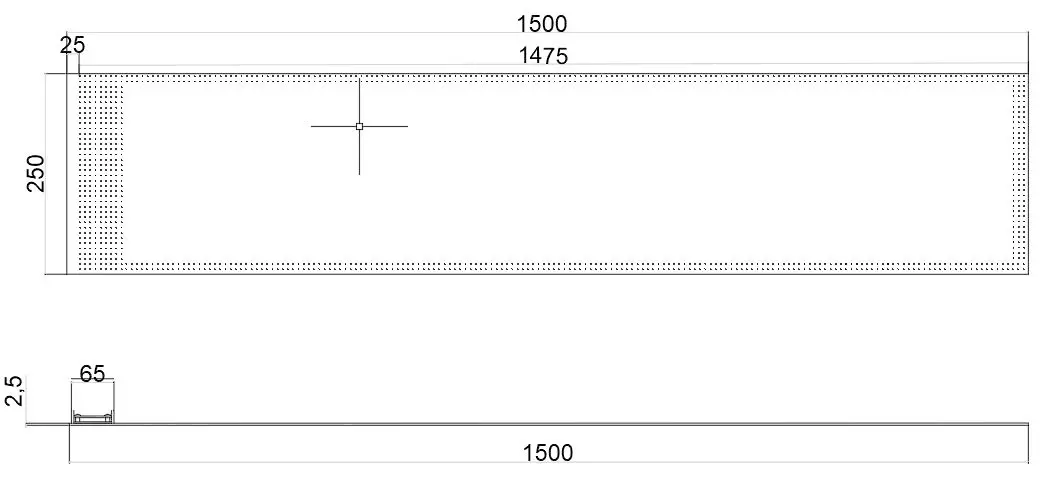

Screen Structure

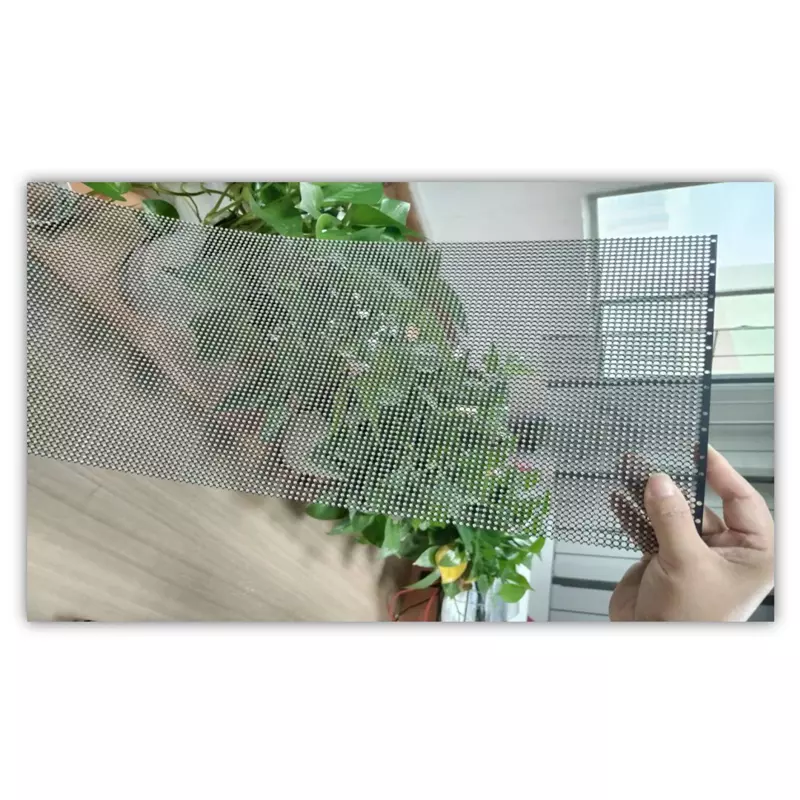

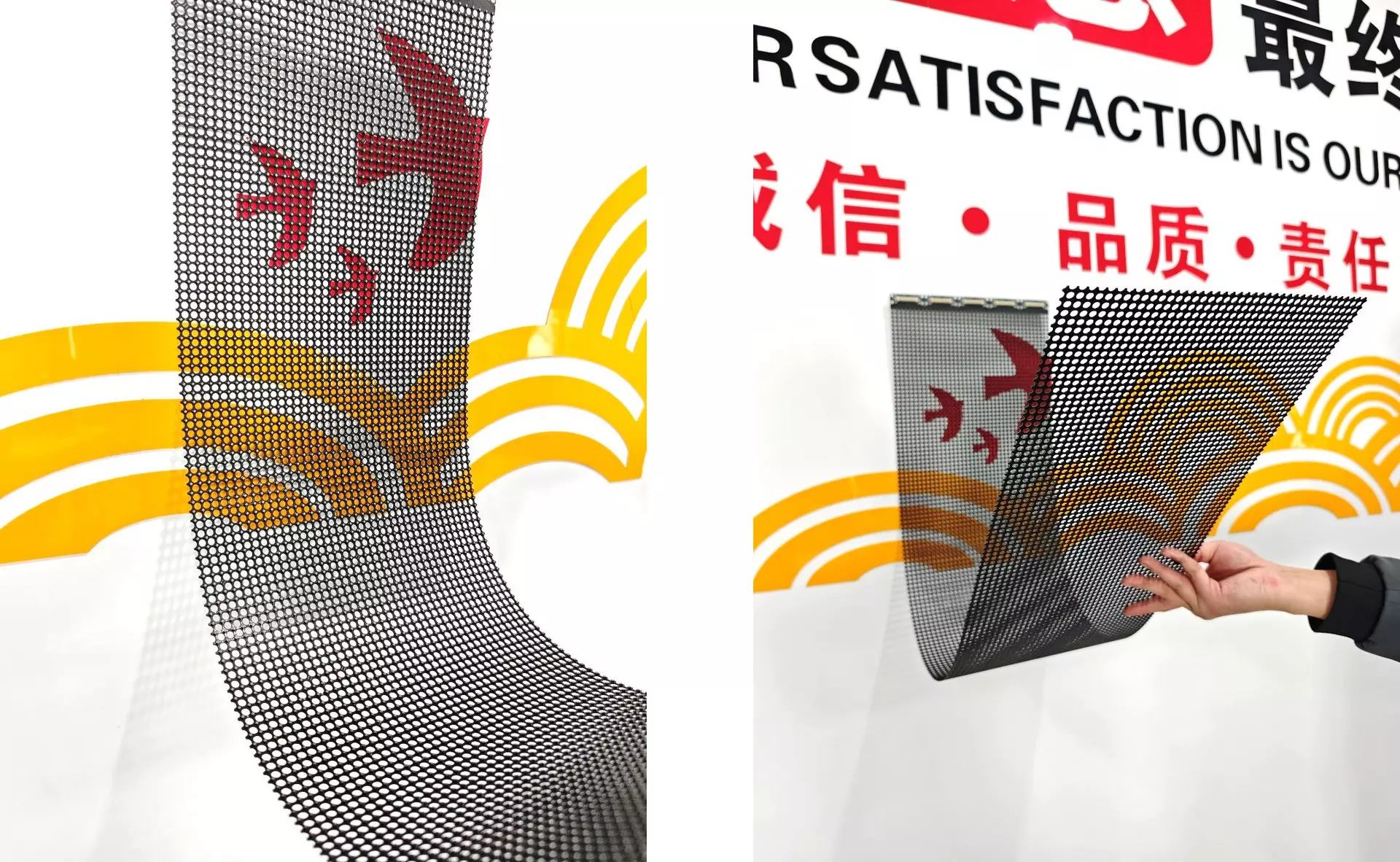

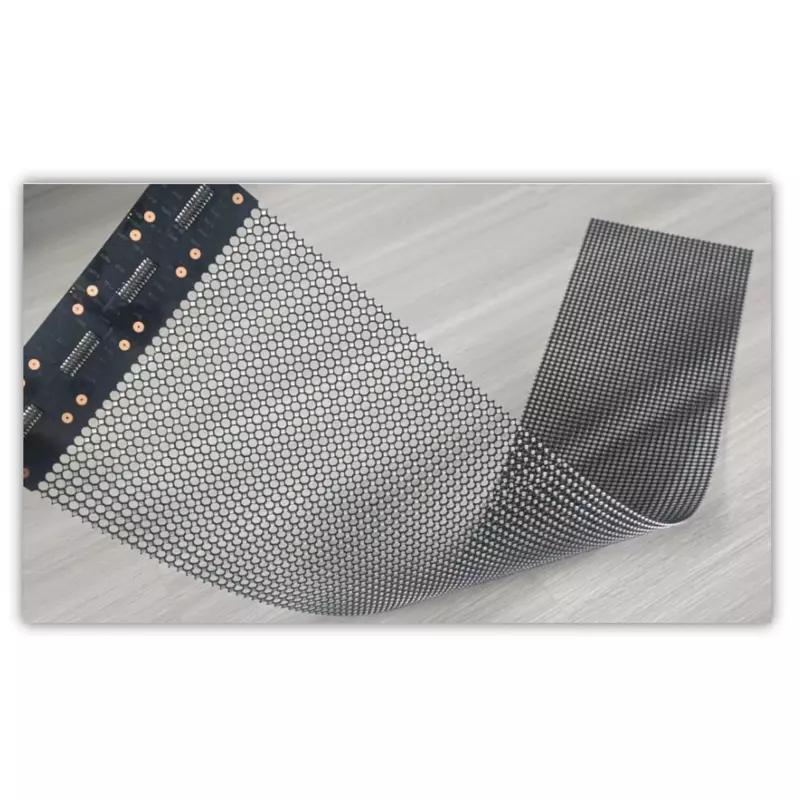

Module Exterior
Product parameters
| Parameters | Event | Unit | WX-9687F4-P2.5 | WX-9687F4-P3.125 | WX-9687F4-P3.91 | WX-9687F4-P6.25 | WX-9687F4-P10 | / |
|---|---|---|---|---|---|---|---|---|
| Module Composition | LED devices | / | WE-RGB-IC | WE-RGB-IC | WE-RGB-IC | WE-RGB-IC | WE-RGB-IC | / |
| Package Forms | / | RGB+IC integrated LED driver | RGB+IC integrated LED driver | RGB+IC integrated LED driver | RGB+IC integrated LED driver | RGB+IC integrated LED driver | / | |
| Pixel Pitch | mm | W: 2.5; H: 2.5 | W: 3.125; H: 3.125 | W: 3.91; H: 3.91 | W: 6.25; H: 6.25 | W: 10; H: 10 | / | |
| Module Size (H*W) | mm | 250*1500mm (W≤1500mm customizable) | 250*1500mm (W≤1500mm customizable) | 250*1500mm (W≤1500mm customizable) | 250*1500mm (W≤1500mm customizable) | 250*1500mm (W≤1500mm customizable) | / | |
| Module Pixel | / | 100*590 | 80*472 | 64*377 | 40*236 | 25*147 | / | |
| Module Weight | Kg/m² | 3.5kg/m² | 3.5kg/m² | 3.5kg/m² | 3.5kg/m² | 3.5kg/m² | / | |
| Optical parameters | Pixel density | Dots/m² | 160000 | 102400 | 65536 | 25600 | 10000 | / |
| Maximum power consumption per module | W | 150 | 150 | 150 | 150 | 150 | / | |
| Transmittance | % | >70% | >75% | >80% | >90% | >93% | / | |
| Brightness Typical | cd/m² | 1000/2000 | 1000/2000 | 2000/4500 | 2000/4500 | 2000/4500 | / | |
| Viewing Angle | ° | Horizontal:140±10°, Vertical:140±10° | Horizontal:140±10°, Vertical:140±10° | Horizontal:140±10°, Vertical:140±10° | Horizontal:140±10°, Vertical:140±10° | Horizontal:140±10°, Vertical:140±10° | / | |
| Optimum Viewing Distance | m | ≥3m | ≥4m | ≥5m | ≥6m | ≥10m | / | |
| Peak Power Consumption | W/m² | 1000W/m² | 1000W/m² | 1000W/m² | 1000W/m² | 1000W/m² | / | |
| Average Power Consumption | W/m² | 350W/m² | 350W/m² | 350W/m² | 350W/m² | 350W/m² | / | |
| Processing capability | Supply Voltage | V | DC5V | DC5V | DC5V | DC5V | DC5V | / |
| Refresh Rate | HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | / | |
| Frame rate | HZ | 60HZ | 60HZ | 60HZ | 60HZ | 60HZ | / | |
| Driving method | / | constant current driver | constant current driver | constant current driver | constant current driver | constant current driver | / | |
| Scanning Method | / | static | static | static | static | static | / | |
| Usage parameters | devices operating life | hrs | ≥100000hrs | ≥100000hrs | ≥100000hrs | ≥100000hrs | ≥100000hrs | / |
| Protection grade | / | IP20 | IP20 | IP20 | IP20 | IP20 | / | |
| Operating Temperature | ℃ | -20~+55℃ | -20~+55℃ | -20~+55℃ | -20~+55℃ | -20~+55℃ | / | |
| Storage Ambient Temperature | ℃ | -20~+60℃ | -20~+60℃ | -20~+60℃ | -20~+60℃ | -20~+60℃ | / | |
| Operating Humidity Range | %RH | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | / | |
| Storage Humidity Range | %RH | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | 10%RH-65%RH noncondensing | / |
