Product Details
Features
Far power supply distance | less wiring | less materials | installation of profile, steel wire and base screw waterproof IP67
Pure light color | PC material | convex cover design, self-cleaning | Profile, steel wire base and screw installation

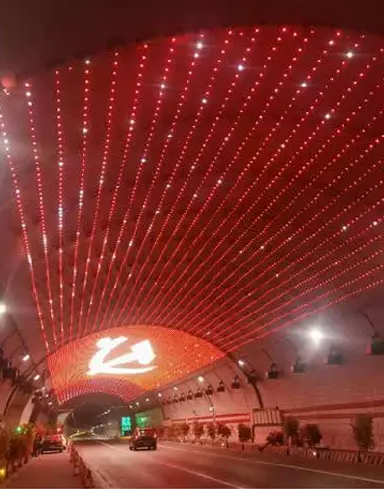

It is widely used in high-end technical, scientific and environment-friendly night scene lighting projects such as commercial and residential buildings, municipal buildings, bank buildings, urban streets, rivers, bridges, urban commercial complexes, star hotels, etc
Technical parameters
| Item | XH-K5006M24 | XH-K5006P24 | XH-K5006PRGBW24 |
|---|---|---|---|
| Product Model | XH-K5006M24 | XH-K5006P24 | XH-K5006PRGBW24 |
| Operating Voltage | DC24/36V | DC24/36V | DC24/36V |
| Light Source Color | R/G/B/2000-6500K / Customizable colors | RGB | RGBW |
| Power | 1.2W | 1.5W | 2W |
| Control Mode | DMX512 | DMX512 | DMX512 |
| Luminous Flux | 48LM (6500K) | 35LM (RGB full brightness) | 35LM (RGB full brightness) |
| Dimension | Ø40×28.5mm | Safety Protection | |
| Housing Material | PC | Ingress Protection: IP67 | |
| Unit Weight | 25g | Flame Retardant Rating: V-0 | |
| Beam Angle | 120° | Electrical Safety Class: Class III | |
| Operating Temperature | -20℃ ~ +60℃ | Impact Resistance: IK10 | |
| Average Lifespan | ＞30000h | Salt Spray Test: Salt corrosion resistant |
