Product Details
Features
Far power supply distance | less wiring | less materials | installation of profile, steel wire and base screw waterproof IP67
Pure light color | PC material | convex cover design, self-cleaning | fully enclosed, glue filled

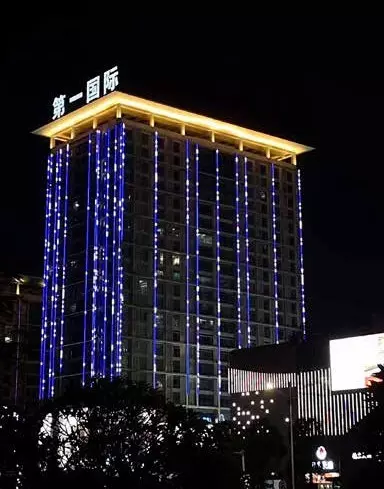

It is widely used in high-end technical, scientific and environment-friendly night scene lighting projects such as commercial and residential buildings, municipal buildings, bank buildings, urban streets, rivers, bridges, urban commercial complexes, star hotels, etc
Technical parameters
| Item | XH-K8012M24 | XH-K8012P24 |
|---|---|---|
| Product Model | XH-K8012M24 | XH-K8012P24 |
| Operating Voltage | DC24V | DC24V |
| Light Source Color | R/G/B/2000-6500K / Customizable colors | RGB |
| Power | 2.4W | 3W |
| Control Mode | Single color on/off | DMX512 |
| Luminous Flux | 110LM (6500K) | 60LM (RGB full brightness) |
| Dimension | Ø80×43.8mm | Safety Protection |
| Housing Material | PC | Ingress Protection: IP67 |
| Unit Weight | 120/110g | Flame Retardant Rating: V-0 |
| Beam Angle | 120° | Electrical Safety Class: Class III |
| Operating Temperature | -20℃ ~ +60℃ | Impact Resistance: IK10 |
| Average Lifespan | ＞30000h | Salt Spray Test: Salt corrosion resistant |
