Product Details
Features
Overall encapsulated waterproof IP67 | Top buckle micro convex cover self-cleaning | Bright and stable lamp bead
Glue, steel wire and base screw installation | Transparent, milky white cover is optional

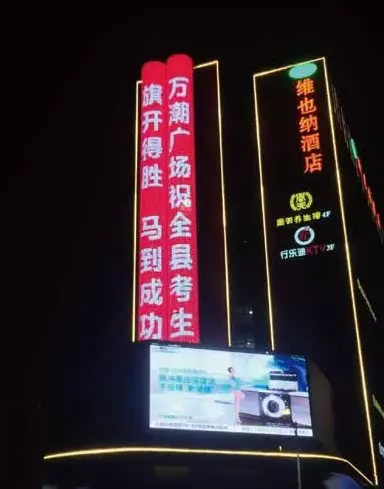

It is widely used for single building outlines such as commercial and residential build ings, municipal buildings, bank buildings, urban streets, rivers, bridges, urban commer cial complexes, star hotels, or multi building linkage media displays
Technical parameters
| Item | XH-H2503M12 | XH-H2503P12 |
|---|---|---|
| Product Model | XH-H2503M12 | XH-H2503P12 |
| Operating Voltage | DC12V | DC12V |
| Light Source Color | R/G/B/2000-6500K / Customizable colors | RGB |
| Power | 0.5W | 0.75W |
| Control Mode | Single color dimming | DMX512 |
| Luminous Flux | 20LM (6500K) | 12LM (RGB full brightness) |
| Dimension | Ø25×15.05mm | Safety Protection |
| Housing Material | PC | Ingress Protection: IP67 |
| Unit Weight | 14g | Flame Retardant Rating: V-0 |
| Beam Angle | 120° | Electrical Safety Class: Class III |
| Operating Temperature | -20℃ ~ +60℃ | Impact Resistance: IK10 |
| Average Lifespan | ＞30000h | Salt Spray Test: Salt corrosion resistant |
