Product Details
Features
Transparent | Modular | Lightweight | Self cooling | Protection IP67
Exclusive patent | Multiple density options | Clasp splicing | Wire fixation | Roll and bag transportation

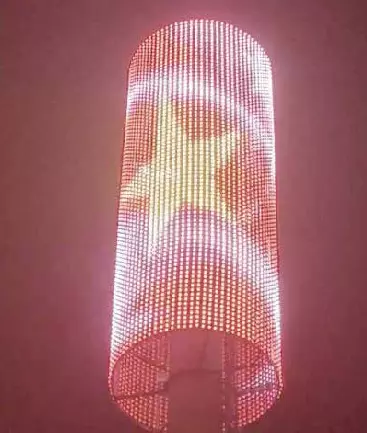

It is commonly used for making lamps for solid wall, steel structure, glass curtain wall plane or curved display screen of large indoor and outdoor buildings; Cultural tourism promotion, commercial advertising, city business card promotion and other large, medium and large display media.
Technical parameters
| Item | Parameter | |
|---|---|---|
| Model | XH-CXG3003P12 | |
| Operating Voltage | DC12V | |
| Light Source Color | RGB | |
| Control System | DMX512 | |
| Pixel Density | 100pcs | 64pcs |
| Pixel Pitch | 100mm | 125mm |
| Max Power Consumption | 75W | 48W |
| Screen Weight | 2.25kg | 1.8kg |
| Luminous Intensity | 3000cd | 2500cd |
| Housing Material | PC |
Safety Protection
| Item | Parameter | Item | Parameter |
|---|---|---|---|
| Beam Angle | 160° | IP Rating | IP67 |
| Operating Temperature | -20℃ ~ +60℃ | Flame Retardant Class | V-0 |
| Average Lifespan | >30000h | Electrical Safety Class | Class III |
| Salt Spray Test | Salt Resistance | Impact Resistance Grade | IK10 |
