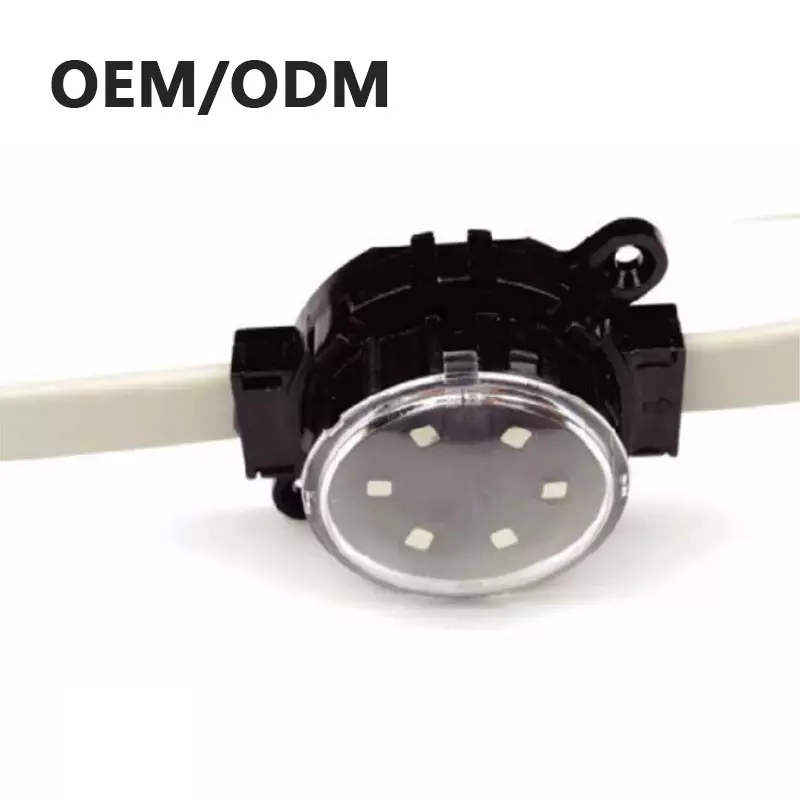

Product Details
Features
Free disassembly and assembly of luminous parts | docking of gold-plated solid pins | waterproof inside and drainage outside the umbrella structure
Long distance energy efficiency and stability | The main body of the lamp is sealed and waterproof IP67
It is widely used in high-end technology, science and technology, environmental protection, zero maintenance night scene lighting projects such as commercial and residential buildings, municipal buildings, bank buildings, urban streets, rivers, bridges, urban commercial complexes, star hotels, sculptures, and artistic structures
Technical parameters
| Item | XH-FT4006M24 | XH-FT4006P24 |
|---|---|---|
| Product Model | XH-FT4006M24 | XH-FT4006P24 |
| Operating Voltage | DC24V | DC24V |
| Light Source Color | R/G/B/2000-6500K / Other Custom Colors | RGB |
| Power | 1.2W | 1.5W |
| Control Protocol | Single Color On-Off | DMX512 |
| Luminous Flux | 68LM (6500K) | 23LM (RGB Full Color) |
| Dimension | Ø40×28.5mm | Safety Protection |
| Housing Material | PC | Ingress Protection: IP67 |
| Weight Per Lamp | 30g | Flame Class: V-0 |
| Beam Angle | 120° | Electrical Safety Class: Class III |
| Operating Temperature | -20℃ ~ +60℃ | Impact Resistance: IK10 |
| Average Lifespan | ＞30000h | Salt Spray Test: Salt Resistance |
