Product Details
Features
Overall encapsulated waterproof IP67 | Top buckle micro convex cover self-cleaning | Bright and stable lamp bead
Glue, steel wire and base screw installation | Transparent, milky white cover is optional

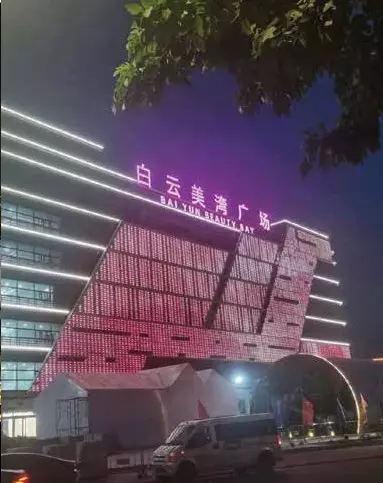

It is widely used for the outlines of single buildings such as commercial and residential buildings, municipal buildings, bank buildings, urban streets, rivers, bridges, urban commercial complexes, star hotels, or multiple buildings linked with media displays; High cost performance light source for large and medium-sized advertising signs.
Technical parameters
| Item | XH-H2501M12 | XH-H2501P05 |
|---|---|---|
| Product Model | XH-H2501M12 | XH-H2501P05 |
| Operating Voltage | DC12V | DC5V |
| Light Source Color | R/G/B/2000-6500K / Other Custom Colors | RGB |
| Power | 0.3W | 0.3W |
| Control Protocol | Single Color On-Off | DMX512 |
| Luminous Flux | 8LM (6500K) | 5LM (RGB Full Color) |
| Dimension | Ø25×15.05mm | Safety Protection |
| Housing Material | PC | Ingress Protection: IP67 |
| Weight Per Lamp | 14g | Flame Class: V-0 |
| Beam Angle | 120° | Electrical Safety Class: Class III |
| Operating Temperature | -20℃ ~ +60℃ | Impact Resistance: IK10 |
| Average Lifespan | ＞30000h | Salt Spray Test: Salt Resistance |
