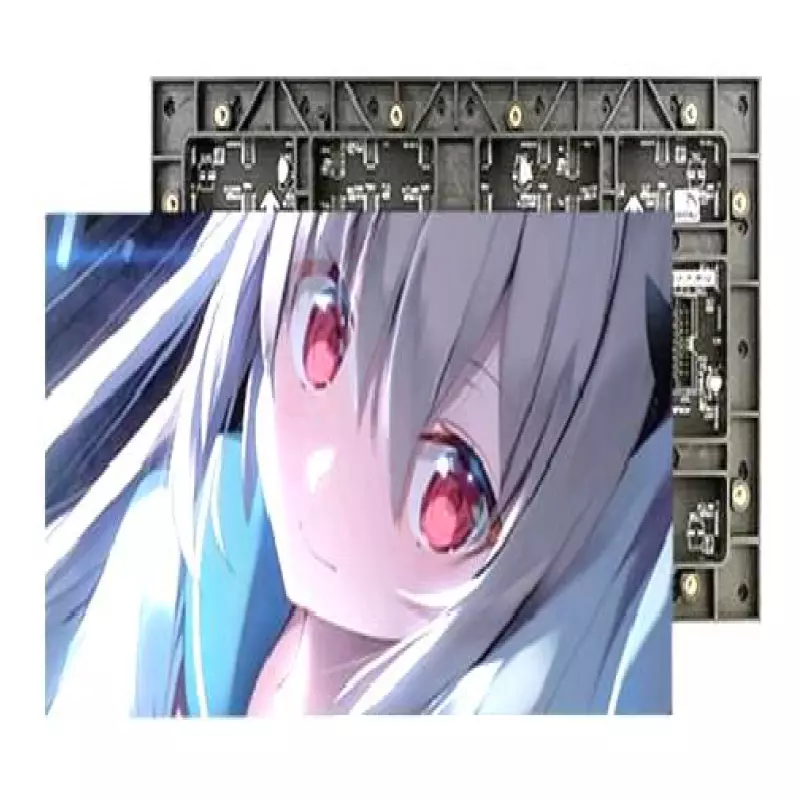

Product Introduction
1. Product Models: P1.25, P1.538, P1.86
2. Product Features:
More natural color reproduction for clearer, more refined display.
Ultra-high refresh rate with broader color gamut delivers an exceptional visual experience.
Seamless integration with tight splicing and superior flatness.Robust construction with enhanced strength, premium base housing kit forstable reliability.
High color brightness consistency and wide brightness adjustment range.
Streamlined installation and maintenance with rapid setup.
3. Applications: Conference rooms, lecture halls, premium exhibition spaces, security surveillance, broadcasting studios, and more.
Product parameters
| Product Model |
P1.25 |
P1.53 |
P1.86 |
| Pixel Composition |
1R1G1B |
1R1G1B |
1R1G1B |
| Pixel pitch (mm) |
1.25mm |
1.53mm |
1.86mm |
| Pixel density Dots/m² |
640000 |
422500 |
288400 |
| Package Type(Surface Mount) |
SMD1010 |
SMD1212 |
SMD1515 |
| Structural Features |
Integrated lighting and control |
Integrated lighting and control |
Integrated lighting and control |
| Drive Type |
Constant Current Drive |
Constant Current Drive |
Constant Current Drive |
| Scan Parameters |
1/64 |
1/52 |
1/43 |
| Module Dimensions |
320*160mm |
320*160mm |
320*160mm |
| Module Resolution Dots |
256*128=32768 |
208*104=21632 |
172*86=14792 |
| Enclosure Dimensions |
640mm*480mm Die-cast aluminum enclosure |
640mm*480mm Die-cast aluminum enclosure |
640mm*480mm Die-cast aluminum enclosure |
| White Balance Brightness |
≥450cd/m² |
≥450cd/m² |
≥450cd/m² |
| Brightness Uniformity |
Brightness difference between pixels: ±2.5% |
Brightness difference between pixels: ±2.5% |
Brightness difference between pixels: ±2.5% |
| Optimal viewing distance |
1–30m |
1–30m |
1–30m |
| Best Viewing Angle |
Horizontal: 120±10°, Vertical: 120±10° |
Horizontal: 120±10°, Vertical: 120±10° |
Horizontal: 120±10°, Vertical: 120±10° |
| Panel thickness |
≤100cm |
≤100cm |
≤100cm |
| Display panel weight |
≤25.5Kg/m² |
≤25.5Kg/m² |
≤25.5Kg/m² |
| Operating Voltage |
AC220V±10%, 50Hz (Three-phase five-wire system) |
AC220V±10%, 50Hz (Three-phase five-wire system) |
AC220V±10%, 50Hz (Three-phase five-wire system) |
| Average power consumption |
400w/m² |
300w/m² |
300w/m² |
| Maximum power consumption |
800w/m² |
600w/m² |
600w/m² |
| Driver device |
High refresh rate IC |
High refresh rate IC |
High refresh rate IC |
| Gray scale |
Full color 256 levels, expandable to 65,536 levels |
Full color 256 levels, expandable to 65,536 levels |
Full color 256 levels, expandable to 65,536 levels |
| Gray Scale Calibration |
Software 100-level grayscale adjustable |
Software 100-level grayscale adjustable |
Software 100-level grayscale adjustable |
| Display Color |
16.7M |
16.7M |
16.7M |
| Frame rate |
≥60Hz |
≥60Hz |
≥60Hz |
| Refresh rate |
≥3840Hz |
≥3840Hz |
≥3840Hz |
| Service life |
≥100,000 hours |
≥100,000 hours |
≥100,000 hours |
| Mean Time Between Failures |
≥10,000 hours |
≥10,000 hours |
≥10,000 hours |
| Ambient temperature |
Storage -50℃~+85℃, Work -40℃~+50℃ |
Storage -50℃~+85℃, Work -40℃~+50℃ |
Storage -50℃~+85℃, Work -40℃~+50℃ |
| Relative humidity |
10%~95%RH |
10%~95%RH |
10%~95%RH |
| Operating Environment |
Indoor |
Indoor |
Indoor |
